How to Choose Metric End Mills for Millimetre-Based CNC Work
A metric drawing comes in. The part feature is clear, the CAM setup is ready, and the next decision sits with the cutting tool. If the diameter, shank, LOC, or overall length is even slightly off, the job can lose accuracy before the first pass is complete. That is why metric end mills matter for shops working with millimetre-based specs, international drawings, and CNC programs that leave little room for guesswork.
When Metric Dimensions Drive the Tool Choice
Metric tooling is not just about converting inch measurements into millimetres. It is about matching the cutter to the part feature exactly as it was designed.For CNC teams, that matters in jobs involving the following:
1.Imported CAD files.
2.European or global part drawings.
3.Millimetre-based mould work.
4.Tight pocket, slot, or profile dimensions.
5.Repeat production where setup consistency matters.
When the program calls for a specific millimeter dimension, using the closest inch-based substitute can create extra offsets, adjustment time, or finish concerns.
Specs Buyers Should Check Before Ordering
The cutting diameter is only the first checkpoint. Buyers comparing end mill metric sizes should also look at how the full tool geometry fits the job.
Key details to review include:
1.Cutting diameter for the required part feature.
2.Shank size for holder compatibility.
3.Length of cut for pocket depth or wall height.
4.Overall length for reach and rigidity.
5.Flute count for chip flow and finish control.
6.End style for the type of feature being machined.
7.Coated or uncoated finish based on workpiece material.
8.Radius, when corner strength is needed.
A tool may match the diameter but still be wrong for the operation if the reach, flute design, or coating does not support the cut.
Why Solid Carbide Matters in Metric Tooling
For production work, metric carbide end mills give shops a stronger option when rigidity, edge retention, and finish consistency matter. Carbide helps resist deflection better than softer tool materials, especially when the setup involves tighter features or higher spindle speeds.
The benefit shows up in control. A stable tool can support cleaner wall finishes, better dimensional accuracy, and more reliable results across repeated parts. That is especially useful when the drawing tolerance does not allow much correction after the fact.
Square End, Ball End, Coated, or Uncoated?
The right end style depends on the feature being machined. A square end and a ball end may share the same millimetre diameter, but they serve very different jobs.
1.Square end tools work well for pockets, slots, shoulders, and flat-bottom features.
2.Ball-end tools are better for contouring, profiling, mould surfaces, and 3D work.
3.There are some operations with aluminum or general purposes where uncoated tools can be used.

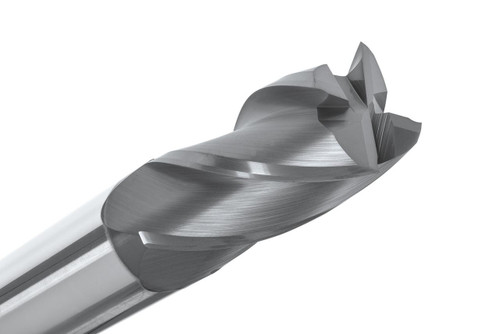

4.ALTiN-coated variations may be utilised in cases where heat and wear resistance are more significant.
5.Radius options can improve edge strength where sharp corners wear too quickly
This is where tool selection becomes more than picking a number. The geometry has to fit the feature, the workpiece, and the toolpath.
Thinking Through a Common Metric Size
A buyer searching for an 8mm end mill metric option may already know the required diameter. But that does not finish the selection.
An 8mm tool could be needed for a slot, a pocket, a contour, or a profiling operation. Each one may require a different flute count, coating, end style, or length of cut. That is why serious buyers often check the full product specification before placing the order.
Single Tools or a Metric End Mill Set?
A metric end mill set can make sense for shops that regularly work across multiple millimeter-based features. It gives the team quick access to common sizes without stopping every job to source one tool at a time.
Single-tool ordering may be better when:
1.The job needs a specific coating.
2.A certain flute count is required.
3.The reach or LOC must match a feature.
4.The operation needs ball-end or square end geometry.
5.Repeat production requires the same tool specification every time.
Both options have value. The better choice depends on how often the shop uses different metric dimensions.
FAQs
What are metric end mills used for?
They are used for milling slots, pockets, contours, profiles, and other part features measured in millimeters.
What sizes are available in metric end mills?
Available sizes can vary by diameter, shank, LOC, OAL, flute count, end style, coating, and radius.
What types of end mills are offered in metric sizes?
Common options include square end, ball end, coated, uncoated, solid carbide, and multi-flute tools.
Are coated and uncoated metric end mills available?
Yes. Coated tools can aid in heat and wear management, whereas uncoated tools might be useful in some general-purpose or non-ferrous tasks.
How do I choose the right metric end mill for my application?
Begin with the drawing requirement, and compare diameter, shank, LOC, OAL, number of flutes, coating, end style, and workpiece material.
