142-3125-ALTiN

General Purpose

Write a Review
$60.20

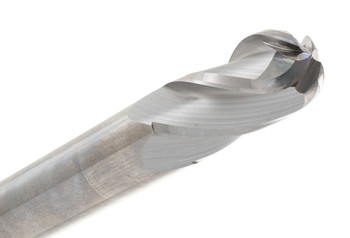

4 flute solid carbide Ball end mills are ideal for rough and finish milling in a large range of materials. These end mills can be used in slotting, profile, plunge and side wall milling. Designed with an industry standard 30° degree helix and precision cutting edges these end mills will perform above the competition.
SKU:
105913
Condition:
New
Shipping:
Calculated at Checkout
DIA:
5/16
SHANK:
5/16
LOC:
13/16
OAL:
2-1/2
FLUTES:
4 Flute
END STYLE:
Ball End
COATING:
ALTiN
Radius:
No
Adding to cart… The item has been added

Product Overview

Curved pocket work really does need a matching radius, plus heat resistance too, and the 142-3125-ALTiN seems to cover both pretty nicely, it comes in at 5/16" diameter with a .1562" radius. This 4 flute ball end mill delivers a clean rounded cutting profile for pocket blending, curved surface operations, and those finishing passes.The ALTiN coating also helps guard the cutting edge against heat and abrasion while your milling conditions get demanding. With a 13/16" length of cut, and 2-1/2" overall length, plus a 30° helix, this 142 Series cutter maintains steady ball end action across lots of general-purpose materials.

Tool Specifications:

  • Diameter: 5/16"
  • Shank: 5/16"
  • Length of Cut (LOC): 13/16"
  • Overall Length (OAL): 2-1/2"
  • Flutes: 4 Flute
  • End Style: Ball End
  • Material: Solid Carbide
  • Coating: ALTiN
  • Radius: .1562"
  • Series: 142 Series
  • Part No: 142-3125-ALTiN

Key Performance Features:

  • 4-flute ball end built for contour and profile milling
  • .1562" radius supports smooth, rounded surface work
  • ALTiN coating improves heat and wear resistance
  • 30° helix supports controlled, general-purpose cutting
  • Handles finishing, blending, and curved pocket machining
  • Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
