Product Overview

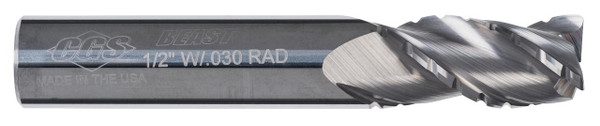

The Beast Series CR1306 3-flute corner radius end mill is made for smooth cutting performance, general milling, slotting, and light roughing; it is meant to help machinists keep reliable material removal going across much machining work. It falls inside the Beast Series lineup, so you get a durable corner radius layout that pairs with premium solid carbide construction, which supports stability, accuracy, and consistent cutting during everyday CNC tasks.
That uncoated solid carbide design brings flexibility across different materials where a coating is not needed. The 3-flute form also helps with steady chip evacuation during continuous cutting. The corner radius profile improves edge durability, it helps lower the chance of chipping, and it supports steadier performance through longer machining cycles.
Tool Specifications:
- Diameter: 1/4"
- Shank Diameter: 1/4"
- Length of Cut: 3/4"
- Overall Length: 2-1/2"
- Flutes: 3
- Style: Corner Radius
- Coating: Uncoated
- Material: Solid Carbide
- Series: Beast Series
- Part Number: CR1306
Key Performance Features:
- 3-flute corner radius design supports smooth cutting during general milling and slotting.
- Solid carbide construction helps with strength, accuracy, and tool life.
- Uncoated design offers versatility across different materials.
- Corner radius profile improves edge durability and helps reduce chipping.
- Supports steady chip evacuation during continuous cutting.
- Helps maintain stability during longer machining cycles.
- Works well for general milling, slotting, and light roughing operations.
- Best suited for reliable material removal in eday CNC machining applications.
