Product Overview

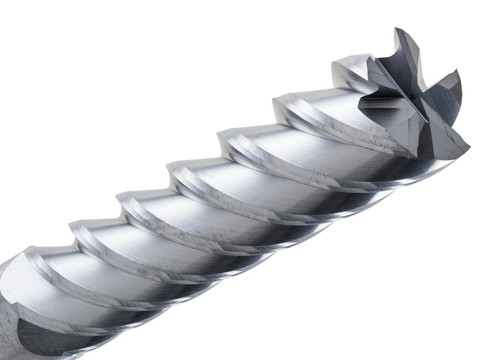

The CGS Tool 45033 is basically a 1/2" diameter, 5-flute solid carbide square end mill from the EF-5 Tornado Series, it’s built specifically for finishing tasks where clean side walls and controlled tool engagement matter more than aggressive stock removal , or whatever.
It has a 2" length of cut and a 4" overall length so you get useful reach for finishing and profiling jobs, and that 5-flute geometry helps with a more refined surface finish, meanwhile the uncoated carbide body is there to keep it practical for everyday shop conditions.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 2"
- Overall Length (OAL): 4"
- Flutes: 5 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS EF-5 Tornado Series
- Part No: 45033
Key Performance Features:
- Finishing applications handled by a 5-flute square end design
- 1/2" diameter supports controlled stock removal
- 2" LOC gives useful cutting reach
- Uncoated construction suits standard shop conditions
- Suited to profiling, finishing, and side wall work
- Performs well in finishing applications across common CNC materials
