Product Overview

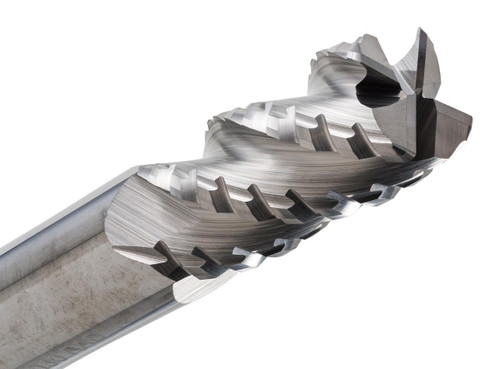

The CGS Tool 1012 is a 3/8" diameter 4-flute solid carbide square end mill from the Beast 1000 Series, sized for roughing and slot milling on heavier jobs where faster stock removal and stability both matter. It's built for shops that need more confidence than a standard rougher gives.
CGS Tool's chip breaker design is matched to reduce spindle load and allow faster feeds in many materials, and the variable helix geometry with a solid carbide body handles steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials with confidence.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Beast 1000 Series
- Part No: 1012
Key Performance Features:
- 4-Flute square end design for roughing and slot milling
- Chip breaker design matched to reduced spindle load
- Variable helix supports smoother roughing performance
- Built for faster feeds than traditional roughing tools
- Effective across steels, stainless, cast iron, and titanium
- Also suited to alloys, Inconel, and select non-ferrous materials
