Product Overview

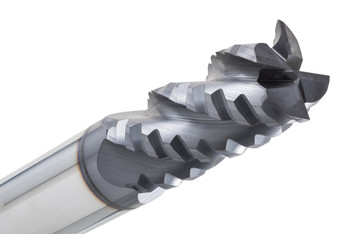

The CGS Tool 1030 is a 3/4" diameter 4-flute solid carbide square end mill from the Beast 1000 Series, built for roughing and slot milling where material removal rate and reduced spindle load matter more than finish.
The Beast rougher uses CGS Tool's chip breaker design to reduce cutting pressure and support faster feeds, and with a 1-1/2" length of cut and 4" overall length, this uncoated cutter is a strong choice for demanding roughing work in steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS Beast 1000 Series
- Part No: 1030
Key Performance Features:
- Roughing and slot milling handled by a 4-flute square end design
- Beast chip breaker design reduces spindle load
- Variable helix supports smoother roughing performance
- 3/4" diameter supports stronger stock removal
- Suited to aggressive milling and slotting applications
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
