Product Overview

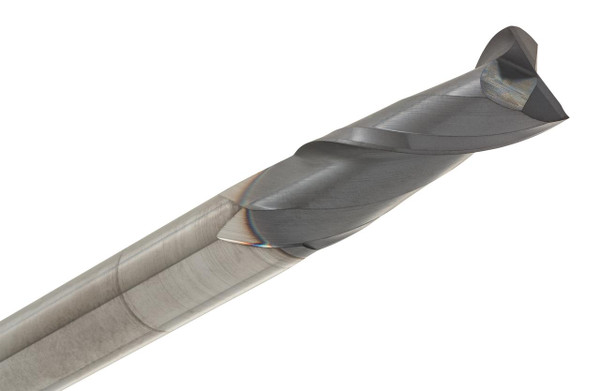

Depending on edge life at that 3/8" diameter, the CGS Tool 120-3750-ALTiN feels like a 2 flute square end mill from the 120 Series, made for slotting, profiling , pocketing and those everyday milling jobs. The 2 flute setup gives extra chip space while cutting , and the ALTiN coating helps defend the cutting edge against heat and wear. It’s solid carbide too so it can work through mild steels, stainless, cast iron, titanium, non ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Helix: 30°
- Design: Single End
- Series: CGS 120 Series
- Part No: 120-3750-ALTiN
Key Performance Features:
- 2-flute square end design provides strong chip clearance
- ALTiN coating helps improve heat resistance and cutting edge life
- 30° helix supports smooth cutting and controlled chip movement
- Solid carbide construction provides rigidity and wear resistance
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, plunge milling, and side-wall milling
- Reliable 3/8" option for general-purpose stock removal
