Product Overview

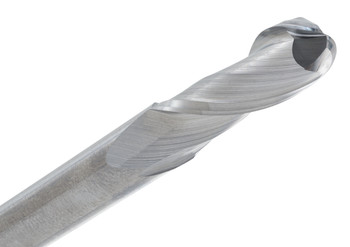

The CGS Tool 122-0469 is a 3/64" diameter 2-flute solid carbide ball end mill made for miniature contour work where a .0234" radius produces exactly the fine detail a small feature calls for.
With a 1/8" length of cut and 1-1/2" overall length, this 122 Series cutter gives controlled ball-end performance in very small CNC features, and the uncoated carbide body makes it practical for detailed general-purpose machining.
Tool Specifications:
- Diameter: 3/64"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0234"
- Series: CGS 122 Series
- Part No: 122-0469
Key Performance Features:
- Miniature contour milling handled by a 2-flute ball end design
- .0234" radius supports very small rounded details
- Compact LOC gives controlled cutting depth
- 30° helix helps maintain steady chip movement
- Suited to finishing, blending, and tiny pocket work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
