Product Overview

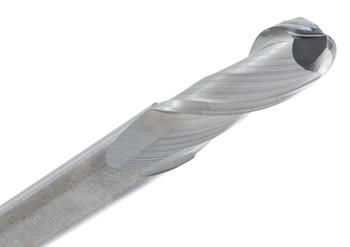

The CGS Tool 122-1562 is a 5/32" diameter 2-flute solid carbide ball end mill from the 122 Series, sized for smaller profile and contour cuts where a rounded finish matters more than raw removal rate. It's a useful cutter for tight pockets and curved surfaces a square end tool would leave too sharp.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0781" radius matched to its diameter for a nice balance of reach and control. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a practical general-purpose ball end option.
Tool Specifications:
- Diameter: 5/32"
- Shank: 3/16"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 2"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0781"
- Series: CGS General Purpose (122 Series)
- Part No: 122-1562
Key Performance Features:
- 2-Flute ball end design for small contour work
- .0781" radius matched to diameter for smooth rounded profiles
- 30° helix with precision-ground cutting edges
- Useful reach for detailed cuts
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
