Product Overview

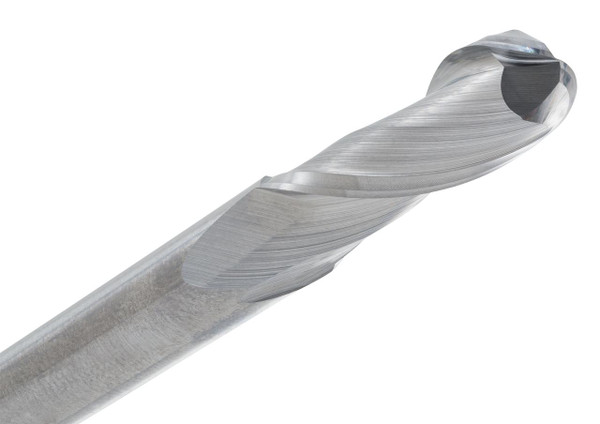

Curved pocket work, at 25/64" diameter, you need a matching radius, and the 122-3906 gives one, at .1953" . This 2-flute ball end mill is built for profile and contour milling, so it gives the machinists that nice rounded cutting shape for surface smoothing and finishing uses, sort of blending into the job.
With a 30° helix and a single-end construction, this 122 Series tool keeps the cut action steady for general purpose tasks. It’s a workable cutter for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics and composites.
Tool Specifications:
- Diameter: 25/64"
- Shank: 7/16"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 2-3/4"
- Flutes: 2 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .1953"
- Series: 122 Series
- Part No: 122-3906
Key Performance Features:
- 2-flute ball end built for contour and profile milling
- .1953" radius supports smooth, rounded surface work
- 30° helix supports dependable, general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
