142-0469-ALTiN

General Purpose

Write a Review
$26.58
4 flute solid carbide Ball end mills are ideal for rough and finish milling in a large range of materials. These end mills can be used in slotting, profile, plunge and side wall milling. Designed with an industry standard 30° degree helix and precision cutting edges these end mills will perform above the competition.
SKU:
105761
Condition:
New
Shipping:
Calculated at Checkout
DIA:
3/64
SHANK:
1/8
LOC:
1/8
OAL:
1-1/2
FLUTES:
4 Flute
END STYLE:
Ball End
COATING:
ALTiN
Radius:
No

Sorry this item is out of stock. Please contact the Sales department for a lead time on new inventory.

Product Overview

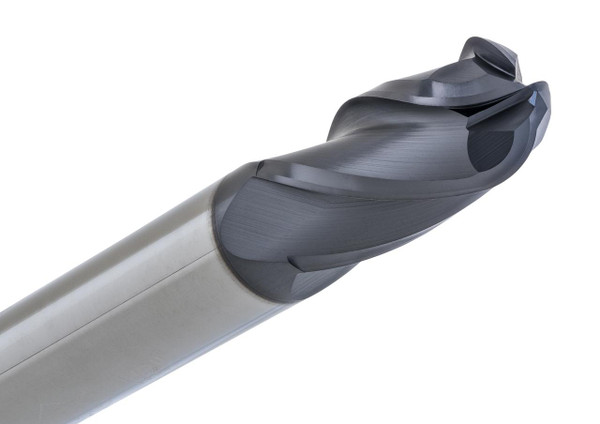

At 3/64" in diameter, the CGS Tool 142-0469-ALTiN is built for detail work most tools can't touch — a 4-flute ball end mill from the 142 Series designed for tiny curved details, small pockets, and delicate finishing passes.
A .0234" radius handles the fine rounded shaping, and ALTiN coating protects the small edge from heat and wear during tougher machining. Compact dimensions throughout make this cutter suited to detailed CNC feature work across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.

Tool Specifications:

  • Diameter: 3/64"
  • Shank: 1/8"
  • Length of Cut (LOC): 1/8"
  • Overall Length (OAL): 1-1/2"
  • Flutes: 4 - Ball End
  • Material: Solid Carbide
  • Coating: ALTiN
  • Series: CGS 142 Series
  • Part No: 142-0469-ALTiN

Key Performance Features:

  • 4-flute ball end built for miniature contour milling
  • .0234" radius supports tiny rounded features
  • ALTiN coating adds heat and wear resistance
  • Compact LOC supports precise cutting in fine details
  • Good for finishing, blending, and tiny pocket work
  • Works in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
