Product Overview

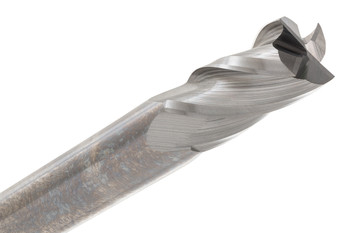

Radius control at 11/32" is of the job for the CGS Tool 142-3438, which is that 4 flute ball end mill from the single end 142 series. It’s built for contouring, profiling, and finishing, not to mention where smooth blending matters.
The ball nose does well on curved surfaces and keeps things tidy, and the four-flute setup gives extra stability during those finishing passes, you know. Since it’s uncoated carbide it takes on mild steels , stainless, cast iron, titanium, non-ferrous materials, plastics , and even composites too.
Tool Specifications:
- Diameter: 11/32"
- Shank: 3/8"
- Length of Cut (LOC): 7/8"
- Overall Length (OAL): 2-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Single End
- Series: CGS 142 Series
- Part No: 142-3438
Key Performance Features:
- 4-flute ball end design for contouring and smooth finishing
- Ball nose profile supports 3D surface work and radius milling
- 30° helix helps maintain balanced cutting and chip movement
- Solid carbide construction provides rigidity and repeatable accuracy
- Uncoated finish suited for general-purpose machining
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for profiling, finishing passes, mold work, and blended surface details
