Product Overview

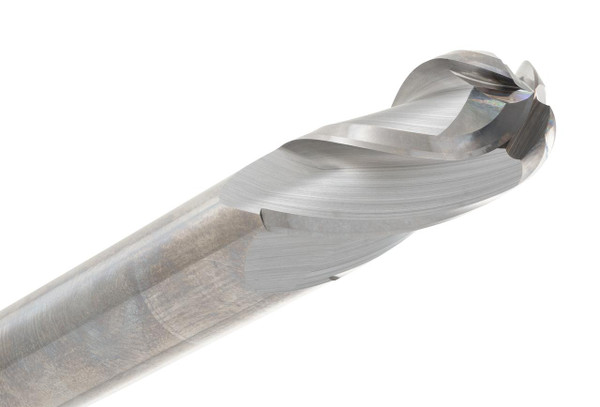

Mid-size finishing is handled well by the CGS Tool 142-4688, it’s a reliable ball nose setup in the 15/32" diameter, 4-flute cutter, from the single-end 142 Series, meant for accurate contour work where surface quality can’t really slide around.
The ball nose takes care of curved surfaces smoother than you’d think, and the 4-flute layout gives extra steadiness for finishing and profiling strokes, too. It comes with uncoated carbide construction and it runs across mild steels, stainless, cast iron, titanium, plus non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 15/32"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Single End
- Series: CGS 142 Series
- Part No: 142-4688
Key Performance Features:
- 4-flute ball end design for smooth contouring and surface finishing
- Ball nose profile supports 3D milling, radius work, and curved details
- 30° helix helps maintain balanced cutting and chip control
- Solid carbide construction provides rigidity and wear resistance
- Uncoated finish suited for general-purpose machining
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for profiling, finishing passes, mold surfaces, and blended features
