Product Overview

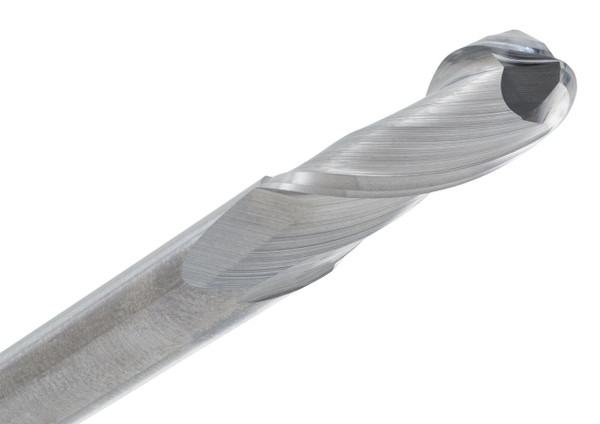

The CGS Tool 122-4688 is a 15/32" diameter 2-flute solid carbide ball end mill from the 122 Series, sized for general-purpose radius cutting in that useful in-between range just under 1/2". It sits comfortably between a smaller finishing tool and a full-size ball nose.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .2344" radius matched to its diameter for a steady, familiar cutting feel. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's a practical everyday option.
Tool Specifications:
- Diameter: 15/32"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .2344"
- Series: CGS General Purpose (122 Series)
- Part No: 122-4688
Key Performance Features:
- 2-Flute ball end design for profile and contour cutting
- .2344" radius matched to diameter for mid-size rounded features
- 30° helix with precision-ground cutting edges
- Single-end solid carbide construction
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
