Product Overview

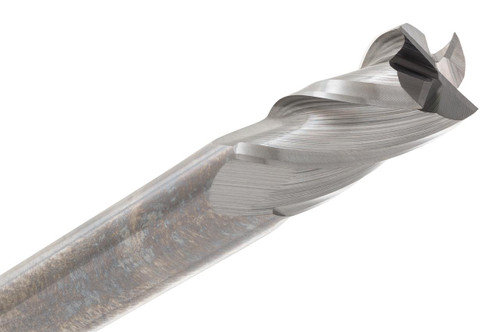

Fine detail milling gets a compact option in the CGS Tool 240-0625-ALTiN, a 1/16" diameter 4-flute square end mill built for tiny slots, small profiles, and light plunge cuts where precision matters more than stock removal.
ALTiN coating gives the small cutting edge extra staying power against heat and wear, and the compact length of cut keeps the tool controlled in tight details. It's a 240 Series cutter suited to mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 1/16"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Series: CGS 240 Series
- Part No: 240-0625-ALTiN
Key Performance Features:
- 4-flute square end built for fine milling work
- 1/16" diameter supports small detailed features
- ALTiN coating adds heat and wear resistance
- Compact LOC supports control in tight details
- Good for small slots, profiles, plunge cuts, and flat-bottom work
- Works in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
