Product Overview

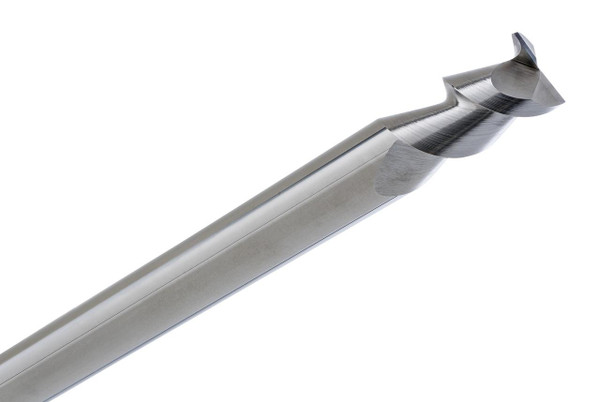

The CGS Tool 2503 is in 3/16” diameter, 2-flute solid carbide square end mill. It is made for really maximum material removal plus surface precision, especially in aluminum, non ferrous metals and plastics. It’s part of the ferocious series, so it’s aimed at machinists that want top tier results when they’re running at extreme feed rates, and faster than you might expect.
Built from premium sub micro grain carbide, the 2503 has a 55° high helix, for better chip evacuation and reduced cutting forces, plus that nice kind of surface finish you’re chasing. The polished cutting edges and that free-cutting geometry help keep built-up edges under control while still holding up a strong tool life, even for demanding high-speed CNC jobs.
Tool Specifications:
- Diameter: 3/16”
- Shank: 3/16”
- Length of Cut (LOC): 1/4”
- Overall Length (OAL): 2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2503
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
