Product Overview

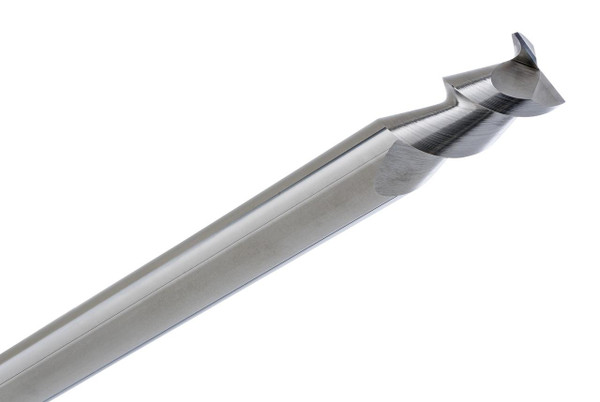

The CGS Tool 2506 has a 1/4” diameter 2 flute solid carbide square end mill. It is made for max material removal plus really tight surface accuracy in aluminum , non ferrous metals, and plastics. It comes from the Ferocious Series, and it’s intended for machinists who expect top level output even when they push it at extreme feed rates, you know.
Built from premium sub micro grain carbide, the 2506 has a 55° high helix angle, so chip evacuation gets better, cutting forces stay lower, and the surface finish comes out really clean. The polished cutting edges and free cutting style help reduce built-up edge while still keeping an exceptional tool lifespan, even when it’s running high speed CNC work.
Tool Specifications:
- Diameter: 1/4”
- Shank: 1/4”
- Length of Cut (LOC): 3/8”
- Overall Length (OAL): 2”
- Flutes: 2 - Square End
- Material: Solid Micro-Grain Carbide
- Coating: Bright (Uncoated)
- Series: CGS Ferocious
- Part No: 2506
Key Performance Features:
- 2-Flute, 55° High Helix design for aluminum and non-ferrous machining
- Ultra-smooth polished land for superior surface finish
- Capable of extreme RPM and feed rates
- Excellent chip evacuation and edge strength
- Ideal for roughing, slotting, and contouring applications
- Reduced neck & Weldon flats available upon request
- ZrN coating option available for extended life and cleaner cuts
