Product Overview

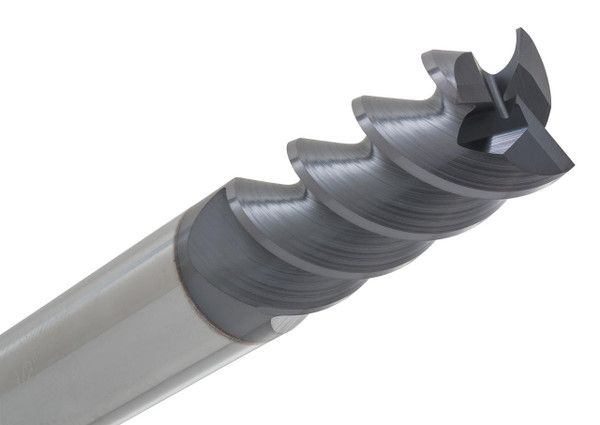

The CGS Tool 3001-ALTiN is a 1/8" diameter 3-flute solid carbide square end mill from the Storm 3000 Series, engineered for production milling that pushes chip load and cutting pressure harder than a standard tool can take. This isn't built for light-duty work — it's a tool for demanding materials where the cutter needs to stay rugged under real pressure.
A 60° high helix and heavy core work together with an eccentric relief design to keep the tool strong under difficult conditions, and the ALTiN coating adds another layer of heat and wear resistance for the more demanding jobs. It's rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 1/8"
- Shank: 1/8"
- Length of Cut (LOC): 1/2"
- Overall Length (OAL): 1-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: CGS Storm 3000 Series
- Part No: 3001-ALTiN
Key Performance Features:
- Tough production milling built into a 3-flute square end design
- 60° high helix moves chips out fast under load
- Heavy core structure handles higher chip loads without flexing
- Eccentric relief adds strength where the tool needs it most
- ALTiN coating extends performance under heat and wear
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
