Product Overview

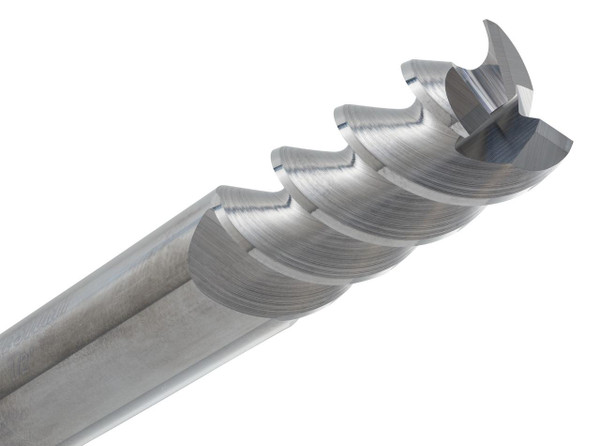

Compact, tough milling work is basically handled by the CGS Tool 3004, that 7/32” diameter 3 flutes square end mill from the Storm 3000 Series, made to help chip evacuation and keep cutting stable even when conditions get really demanding.
A 60° high helix moves chips fast, a heavy core absorbs higher chip loads, and eccentric relief geometry keeps the cutter rugged. With a 3/4" length of cut, the 3004 supports compact square-end milling across steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 7/32”
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS Storm 3000 Series
- Part No: 3004
Key Performance Features:
- 3-flute square end built for tough production milling
- 60° high helix supports fast chip evacuation
- Heavy core manages higher chip loads
- Eccentric relief design improves tool strength
- Good for compact roughing, slotting, and profiling
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
