Product Overview

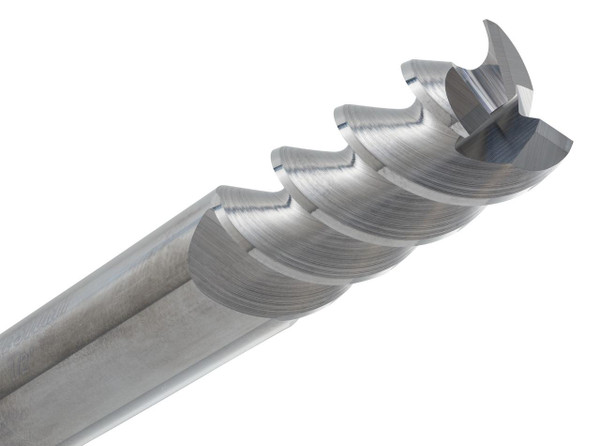

Strong square-end performance at 3/8" diameter is what the CGS Tool 3009 brings to the Storm 3000 Series — a 3-flute cutter built for chip evacuation, tool strength, and stable cutting under demanding conditions.
A 60° high helix moves chips fast, a heavy core absorbs high chip loads, and eccentric relief geometry keeps the cutter rugged. With a 1" length of cut, the 3009 supports roughing, profiling, slotting, and side wall work in steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS Storm 3000 Series
- Part No: 3009
Key Performance Features:
- 3-flute square end built for tough production milling
- 60° high helix supports fast chip evacuation
- Heavy core manages higher chip loads
- Eccentric relief design improves tool strength
- Good for roughing, profiling, slotting, and side wall work
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
