Product Overview

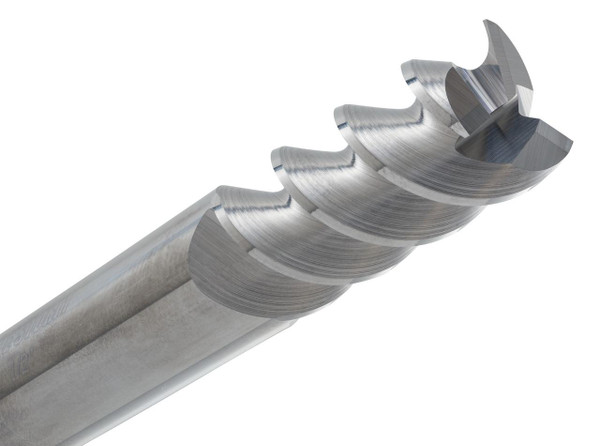

You want extended reach, but also rugged strength that actually holds up on those nasty jobs, and the 3124 kind of does both, in one go at 3/4" diameter. It s a 3 flutes square end mill, from the Storm 3100 Series, and it s built for situations where long cutting reach, chip control, and tool strength have to all play nice in the same operation.
With a 60° high helix, a heavy core, plus an eccentric relief setup, this cutter manages high chip loads and tougher production demands without much drama. Overall, it s a solid match for steels, stainless, cast iron, titanium, alloys, Inconel and also some selected non ferrous materials.
Tool Specifications:
- Diameter: 3/4"
- Shank: 3/4"
- Length of Cut (LOC): 2-1/2"
- Overall Length (OAL): 5"
- Flutes: 3 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: Storm 3100 Series
- Part No: 3124
Key Performance Features:
- 3-flute square end built for tough milling applications
- 60° high helix supports fast chip evacuation
- Heavy core helps manage high chip loads
- Eccentric relief design improves tool toughness
- 2-1/2" length of cut gives added cutting reach
- Rated for steels, stainless, cast iron, titanium, alloys, and Inconel
