Product Overview

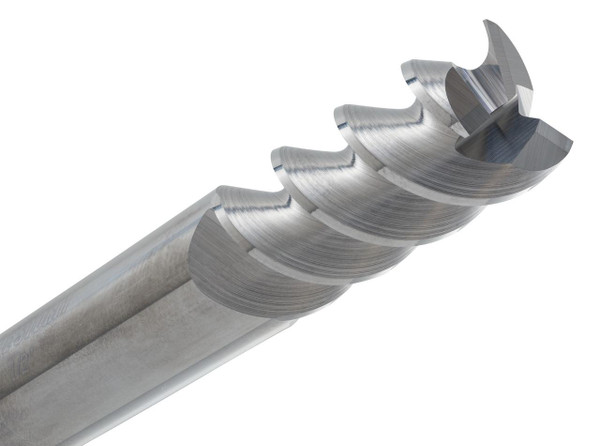

The CGS Tool 3137 is this 1" diameter, 3-flute solid carbide square end mill from the Storm 3100 Series and it’s made for tough production milling, where good chip evacuation and high chip-load capacity really need to stay consistent, even during a longer cut, you know.
The Storm setup leans on a 60° high helix plus a heavy core, and some eccentric relief to keep the cutter rugged under demanding conditions. Then, with a 5" length of cut and 8" overall length, the 3137 gives you that extended reach for heavy-duty milling uses, across longer runs.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 5"
- Overall Length (OAL): 8"
- Flutes: 3 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS Storm 3100 Series
- Part No: 3137
Key Performance Features:
- Tough production milling handled by a 3-flute square end design
- 60° high helix supports fast chip evacuation
- Heavy core manages high chip loads
- Eccentric relief adds tool strength
- 5" LOC gives extended cutting depth
- Ideal for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
