Product Overview

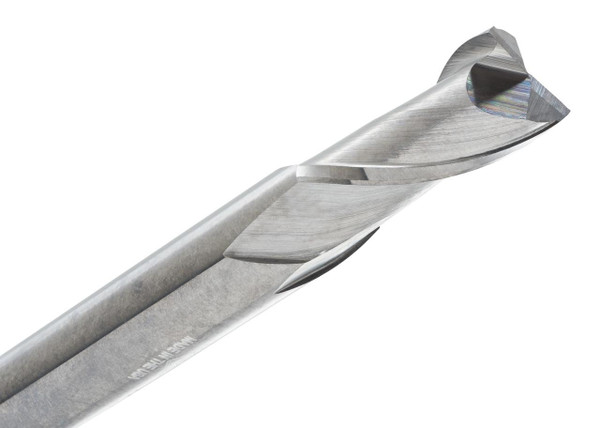

The CGS Tool 420-5000 is this 1/2" diameter 2-flute solid carbide square end mill , it has a double-end design too, and it is really meant for general purpose milling where clean square-ends cutting and longer tool life of both show up in the shop’s bottom line.
It comes with a 5/8" length of cut and a 3" overall length, and the 420 Series cutter tends to stay steady when you’re doing slots, profiles, plunge cuts ,and side wall work. Also the uncoated carbide body makes it a sensible pick for normal CNC shop conditions across mild steels, stainless, cast iron, titanium, and non-ferrous metals too, plus plastics and composites.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 3"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 420 Series
- Part No: 420-5000
Key Performance Features:
- General-purpose milling handled by a 2-flute square end design
- Double-end construction gives use from both cutting ends
- 1/2" diameter supports controlled stock removal
- 30° helix keeps chip movement smooth
- Suited to slots, profiles, plunge cuts, and side wall milling
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
