Product Overview

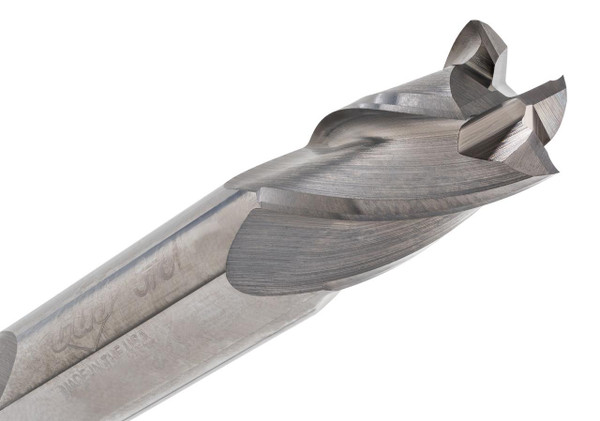

The CGS Tool 440-0469 is a 3/64" diameter 4-flute solid carbide square end mill with a double-end design, built for very fine milling work where tiny slots and delicate plunge cuts need careful control.
With a 3/32" length of cut and 1-1/2" overall length, this 440 Series cutter gives usable cutting value from both ends, and the uncoated carbide body makes it practical for detailed general-purpose CNC machining.
Tool Specifications:
- Diameter: 3/64"
- Shank: 1/8"
- Length of Cut (LOC): 3/32"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 440 Series
- Part No: 440-0469
Key Performance Features:
- Miniature milling work handled by a 4-flute square end design
- Double-end construction gives use from both cutting ends
- 3/64" diameter supports very small features
- Compact LOC supports control in tight details
- Suited to tiny slots, profiles, plunge cuts, and flat-bottom work
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
