Product Overview

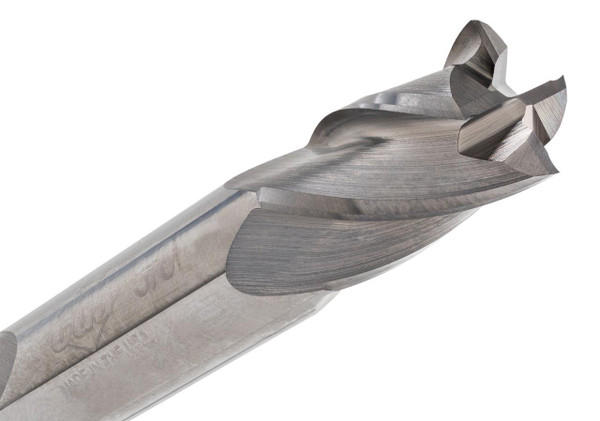

The CGS Tool 440-1562 is a 5/32" diameter 4-flute solid carbide square end mill from the 440 Series, built with a double-end design for smaller applications where clean square-end cutting and extra tool value both matter. It's a compact everyday cutter.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix matched to smooth, simple cutting in general-purpose work. Uncoated and rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's useful for small slots and flat-bottom features.
Tool Specifications:
- Diameter: 5/32"
- Shank: 5/32"
- Length of Cut (LOC): 5/16"
- Overall Length (OAL): 2"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS General Purpose (440 Series)
- Part No: 440-1562
Key Performance Features:
- 4-Flute square end design for smaller milling work
- Double-end body extends cutting use from both ends
- 30° helix with precision-ground cutting edges
- Uncoated construction for standard applications
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
