Product Overview

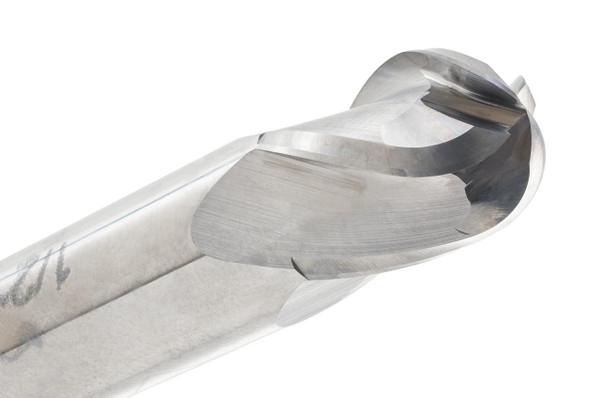

Fine detail work calls for a fine tool, and the CGS Tool 442-0625 delivers exactly that — a 1/16" diameter 4-flute ball end mill with cutting edges on both ends. It's built for the of miniature contour milling where the pocket or curve you're chasing is genuinely small.
A .0312" radius keeps the ball-end form clean at that scale, and the double-end design means the tool gives you two working edges before it's done. A 30° helix helps keep chip movement under control, and the 442-0625 handles mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites without issue.
Tool Specifications:
- Diameter: 1/16"
- Shank: 1/8"
- Length of Cut (LOC): 1/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS 442 Series
- Part No: 442-0625
Key Performance Features:
- 4-flute ball end built for fine contour milling
- Double-end construction gives two usable cutting ends
- .0312" radius supports small rounded feature work
- 30° helix keeps chip movement controlled
- Good for finishing, blending, and compact pocket work
- Works in mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
