Product Overview

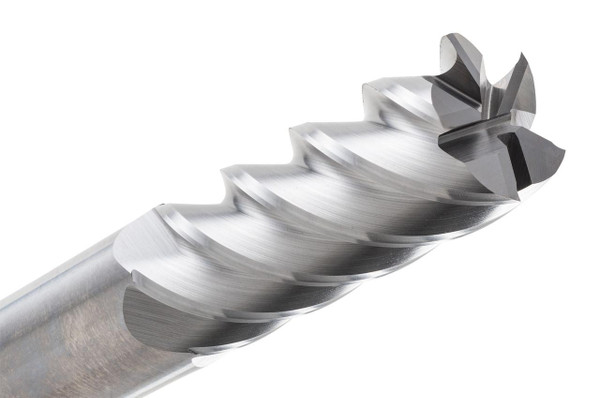

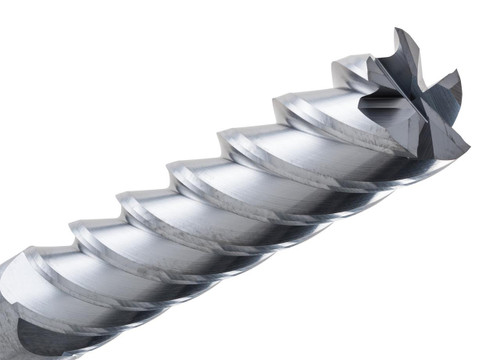

Built for high performance finish milling, this 5 flute square end mill is made to give smooth cutting action, clean surface finishes, and stable machining performance, like it knows what it is doing. The high helix geometry helps with chip evacuation, and it supports efficient cutting when you push the feed rates higher, which is handy for that precision finish work. Its bright uncoated style means dependable results across a pretty wide variety of materials.
Tool Specifications:
- Diameter: 3/16"
- Shank: 3/16"
- Length of Cut: 5/16"
- Overall Length: 2"
- Flutes: 5
- Style: Square End
- Coating: Uncoated / Bright Finish
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting and superior surface finishes.
- High helix geometry improves chip evacuation efficiency.
- Supports higher feed rates for increased machining productivity.
- Bright finish helps reduce material buildup during cutting.
- Solid carbide construction provides strength and wear resistance.
- Maintains stable cutting performance in precision finishing applications.
- Square end design enables accurate profiling and edge finishing.
- Suitable for machining a wide range of ferrous and non-ferrous materials.
