Product Overview

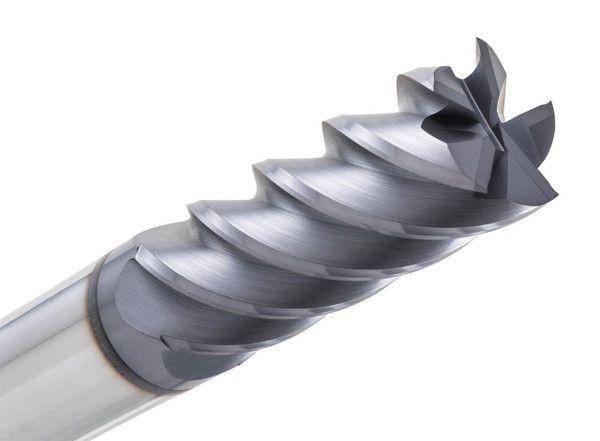

For high performance finish milling, this 5 flute square end mill sort of gives a smooth cutting action, and it delivers excellent surface finish quality plus solid machining stability. The ALTiN coating brings superb heat resistance together with improved wear protection.
Also, the ALTiN coating provides excellent heat resistance and better wear protection, so it’s well suited for demanding cutting conditions and higher cutting speeds. The 45° high helix design really helps with chip evacuation, and it supports consistent, efficient finishing performance.
Tool Specifications:
- Diameter: 9/32"
- Shank: 5/16"
- Length of Cut: 7/16"
- Overall Length: 2"
- Flutes: 5
- Style: Square End
- Coating: ALTiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting and superior surface finishes.
- ALTiN coating improves heat resistance and extends tool life.
- Enhances wear protection for demanding machining applications.
- Reduces friction for stable and consistent cutting performance.
- High helix geometry promotes efficient chip evacuation.
- Supports higher feed rates for increased machining productivity.
- Solid carbide construction provides strength and long-lasting durability.
- Maintains excellent stability during precision finishing operations.
