Product Overview

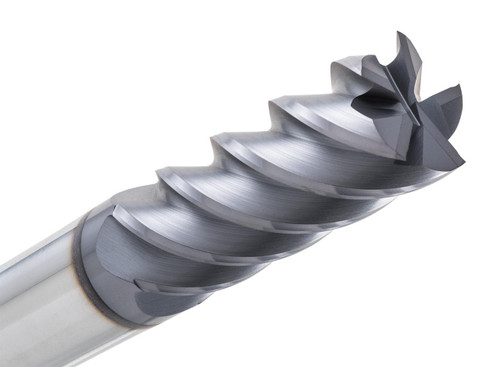

Built for that high-performance finish milling, this 5-flute square end mill gives a smoother cutting action, delivers top tier surface finish results and still keeps machining stability more reliable than you might expect. The TiN coating helps reduce friction, lowers tool wear, and boosts heat resistance plus better lubricity, so you can stretch the tool life during continuous machining. That 45° high helix setup supports efficient chip evacuation, and keeps the cutting pretty consistent while you’re doing precision finishing work.
Tool Specifications:
- Diameter: 5/16"
- Shank: 5/16"
- Length of Cut: 13/16"
- Overall Length: 2-1/2"
- Flutes: 5
- Style: Square End
- Coating: TiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting and superior surface finishes
- TiN coating improves wear resistance and extends tool life
- Reduces friction for stable and consistent machining performance
- Enhances heat resistance for reliable high-speed milling operations
- Improves lubricity for smoother cutting action
- High helix geometry promotes efficient chip evacuation
- Supports higher feed rates for increased machining productivity
- Solid carbide construction delivers strength and long-lasting durability
