Product Overview

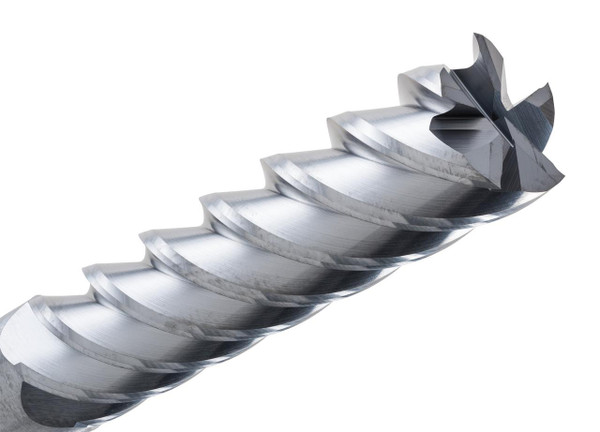

This kind of 5-flute square end mill is made for high performance finish milling, so it can give that smooth cutting feel, really clean surface outputs, and steady stability even when you’re doing precision machining-type jobs. It uses TiCN coated solid carbide, which gives higher wear resistance and a longer tool life, so you get more time between changes. Also, the 45° high helix layout helps with chip evacuation, and it supports consistent cutting performance at higher feed rates, without feeling too jumpy.
Tool Specifications:
- Diameter: 11/32"
- Shank: 3/8"
- Length of Cut: 1"
- Overall Length: 2-1/2"
- Flutes: 5
- Style: Square End
- Coating: TiCN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting action and superior surface finishes.
- TiCN coating improves wear resistance and extends tool life in demanding machining applications.
- Increases surface hardness for enhanced durability and cutting performance.
- 45° high helix geometry improves chip evacuation and reduces heat buildup.
- Supports higher feed rates for increased machining productivity and efficiency.
- Extended 1" length of cut enables deeper reach for slotting and finishing operations.
- Solid carbide construction provides exceptional strength, rigidity, and long-lasting durability for precision machining tasks..
