Product Overview

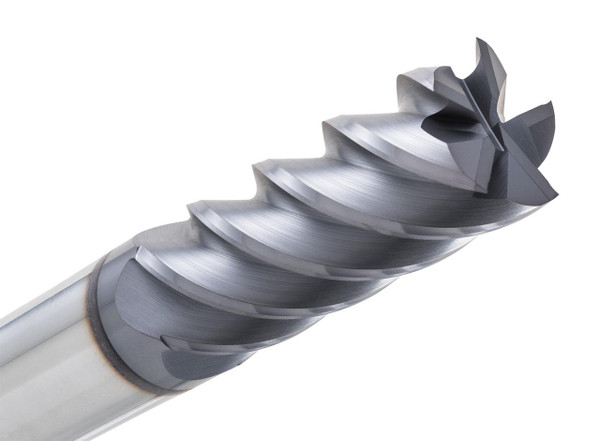

Used for high-performance finish milling, this 5-flute square end mill gives a smoother cutting action, nicer surface finishing, and steady stability while you do precision machining stuff. The ALTiN coating on a solid carbide body helps with heat resistance and extends the tool life too, and the 45° high helix angle helps things like chip evacuation move along better, so cutting stays consistent even when you push higher feed rates.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut: 1"
- Overall Length: 2-1/2"
- Flutes: 5
- Style: Square End
- Coating: ALTiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features:
- 5-flute design delivers smooth cutting action and superior surface finishes
- ALTiN coating provides excellent heat resistance and extends tool life in demanding machining applications
- Improves wear resistance for reliable and consistent cutting performance
- 45° high helix geometry enhances chip evacuation and minimizes heat buildup
- Supports higher feed rates for increased machining productivity and efficiency
- Extended 1" length of cut enables greater reach for slotting and finishing operations
- Solid carbide construction provides exceptional strength, rigidity, and long-lasting durability for precision milling applications
