Product Overview

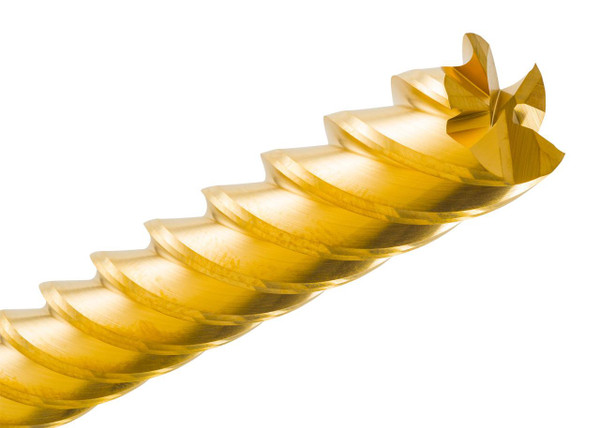

Built for high-performance finish milling use cases, this 5-flute square end mill gives strong cutting stability, plus a smooth machining motion and a nicer surface finish even across many different materials. The better TiN coating (titanium nitride) helps with wear resistance , cuts down friction too, and generally stretches tool life out longer. Also, the 45° high-helix shape helps with chip escape in a more efficient way, so you get steadier cutting performance when you run higher feed rates, without losing much of the finish.
Tool Specifications:
- Diameter: 13/32"
- Shank Diameter: 7/16"
- Length of Cut: 9/16"
- Overall Length: 2-1/2"
- Flutes: 5
- Style: Square End
- Coating: TiN
- Material: Solid Carbide
- Helix Angle: 45°
Key Performance Features: :
- Ideal for finish milling, side milling, profiling, and contouring operations
- Optimized for high-feed finishing applications requiring superior accuracy
- Suitable for machining steels, stainless steels, and cast iron
- Performs exceptionally well in titanium alloys and Inconel® materials
- Compatible with select non-ferrous metals
- Delivers excellent dimensional precision and superior surface finish
- Engineered for extended tool life in demanding machining environments
- Supports consistent performance across a wide range of CNC milling applications
