Product Overview

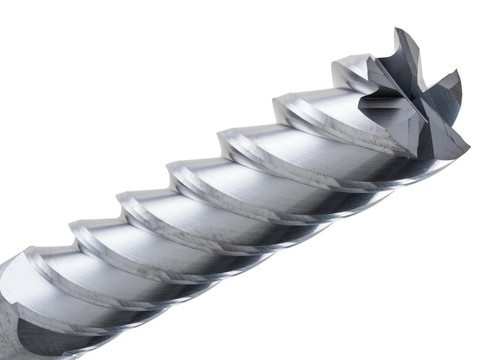

Engineered for high-performanc finish milling and precision machining duties, the 45038-TiCN 5-flute square end mill is made to deliver really nice surface finishes, and to help push extreme feed rates during finishing steps. As a member of the 45000 Series Super Finisher, this tool mixes modern cutting geometry with premium solid carbide build. So you can expect sharp accuracy, strong productivity, and better surface quality all at once, even if the setup gets a bit demanding.
The TiCN coating (Titanium Carbonitride) boosts hardness, gives better wear resistance, and also cuts down friction , which tends to mean the tool lasts longer in harsh machining environments. And that 45° high-helix shape helps clear chips quickly, reduces chatter vibes , and keeps the cut smooth and steady across a broad range of materials, not just one or two.
Tool Specifications:
- Diameter: 5/8"
- Shank Diameter: 5/8"
- Length of Cut: 2-1/2"
- Overall Length: 5"
- Flutes: 5
- Style: Square End
- Coating: TiCN
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45038-TiCN
Key Performance Features:
- Ideal for finish milling, side milling, contouring, profiling, and high-feed finishing operations.
- Supports applications requiring superior surface quality and dimensional accuracy.
- Recommended for machining steels, stainless steels, cast iron, titanium, alloys, Inconel®, and select non-ferrous materials.
- 5-flute design helps deliver stable and consistent cutting performance.
- 45° high-helix geometry supports efficient chip evacuation.
- Helps improve productivity in precision CNC machining environments.
- A reliable choice for applications where finishing quality, accuracy, and machining stability are important.
