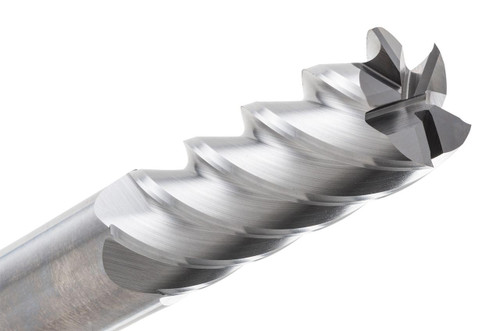

Product Overview
Engineered for really high-performance finish milling and precision machining use cases, the 45041-TiN 5-flute square end mill is set up to help you get a superior surface finish. It also supports extreme feed rates when you’re doing finishing work. This one, part of the 45000 Series Super Finisher, kind of mixes advanced cutting geometry with premium solid carbide construction so you can count on consistent accuracy, better productivity, and reliable surface quality.
The TiN , which is Titanium Nitride, coating boosts wear resistance, lowers friction, and extends the tool life , so it ends up being a dependable choice for general-purpose as well as production machining environments. Also the 45° high-helix geometry helps chip evacuation work more efficiently; it reduces vibration and keeps the cutting action smooth and stable across a broad range of materials.
Tool Specifications:
- Diameter: 3/4"
- Shank Diameter: 3/4"
- Length of Cut: 1-5/8"
- Overall Length: 4"
- Flutes: 5
- Style: Square End
- Coating: TiN
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45041-TiN
Key Performance Features:
- Ideal for finish milling, side milling, contouring, profiling, and high-feed finishing operations.
- Supports applications requiring superior surface quality and dimensional accuracy.
- Recommended for machining steels, stainless steels, cast iron, titanium, alloys, Inconel®, and select non-ferrous materials.
- 5-flute design helps deliver stable and consistent cutting performance.
- 45° high-helix geometry supports efficient chip evacuation.
- Helps improve productivity in precision CNC machining environments.
- A strong choice for applications where finishing quality, accuracy, and machining stability are important.
