Product Overview

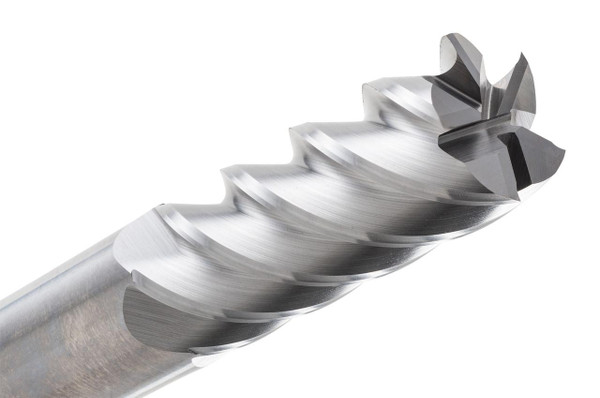

Engineered for high-performance finish milling and precision machining uses, the 45049 5-flute square end mill is built to help you get a better surface finish, and also it supports extreme feed rates when you’re doing those finishing operations. I mean, as part of the 45000 Series Super Finisher, this cutting tool mixes advanced cutting geometry with high-grade solid carbide construction so it can deliver solid accuracy, strong productivity, and good surface quality.
The uncoated (bright finish) setup gives you sharp cutting edges and pretty consistent cutting behaviour across a wide mix of materials, so it feels reliable. And the 45° high-helix geometry works to move chips out more efficiently, cuts down on vibration, and keeps the cutting action smooth and stable for those high-quality finishing results.
Tool Specifications:
- Diameter: 1"
- Shank Diameter: 1"
- Length of Cut: 4-1/8"
- Overall Length: 7"
- Flutes: 5
- Style: Square End
- Coating: Uncoated (Bright Finish)
- Material: Solid Carbide
- Helix Angle: 45°
- Configuration: Single End
- Series: 45000 Series Super Finisher
- Part Number: 45049
Key Performance Features:
- Ideal for finish milling, side milling, contouring, profiling, and high-feed finishing operations.
- Supports applications requiring superior surface quality and dimensional accuracy.
- Recommended for machining steels, stainless steels, cast iron, titanium, alloys, Inconel®, and select non-ferrous materials.
- Extended length of cut supports deep finishing and extended-reach machining.
- 5-flute geometry helps deliver stable and consistent cutting performance.
- 45° high-helix structure supports efficient chip evacuation.
- Helps improve productivity in demanding CNC finishing operations.
- Suitable for deep finishing, extended-reach machining, and demanding CNC applications.
