Product Overview

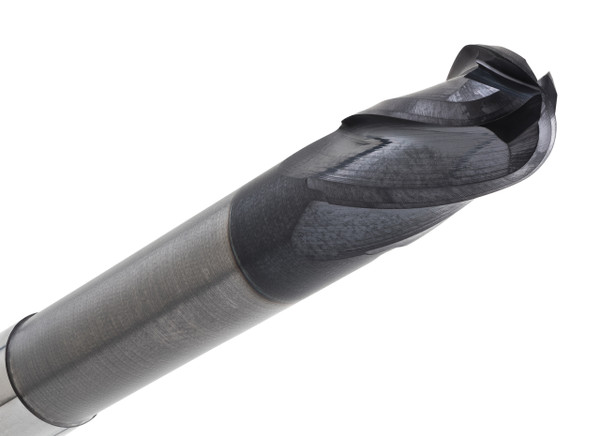

The CGS Tool 8007-ALTiN is a 3/8" diameter 4-flute solid carbide ball end mill from the 8000 Profile Series, sized for profile, deep pocket, and contour milling where the tool needs to leave a smooth rounded path instead of a square shoulder. It's built for harder or longer-running cuts.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .1875" radius matched to its diameter, with an ALTiN coating that helps the tool handle heat during extended runs. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it's dependable for contour finishing.
Tool Specifications:
- Diameter: 3/8"
- Shank: 3/8"
- Length of Cut (LOC): 5/8"
- Overall Length (OAL): 4"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .1875"
- Series: CGS 8000 Profile Series
- Part No: 8007-ALTiN
Key Performance Features:
- 4-Flute ball end design for profile and contour milling
- ALTiN coating matched to diameter for heat resistance
- .1875" radius produces smooth rounded cuts
- 30° helix with precision-ground cutting edges
- Effective across mild steels, stainless, cast iron, and titanium
- Also suited to non-ferrous metals, plastics, and composites
