Product Overview

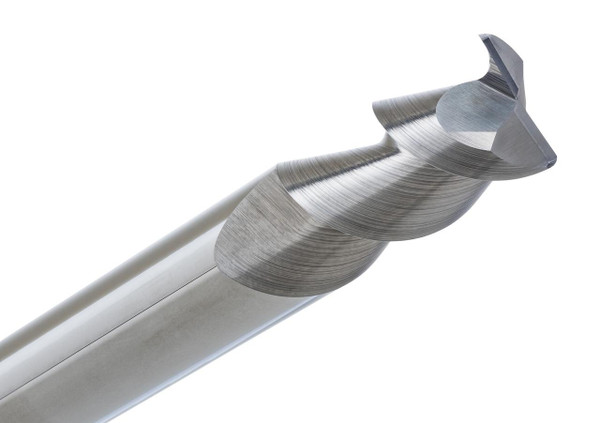

The CGS Tool CR2069.030 is a 1" diameter, 2 flute solid carbide corner radius end mill , it is engineered for high performance machining of aluminum, non-ferrous metals, plastics and composite materials. Like part of the CR2000 Series Ferocious, this tool gives exceptional cutting efficiency, better edge durability, and a steady surface finish quality for demanding CNC milling applications.
Made from premium solid carbide, the CR2069.030 features CGS Tool’s original 55° high helix geometry , made to maximize chip evacuation, reduce cutting forces, and still handle aggressive feed rates. The .030" corner radius kind of “locks in” the cutting edge, it helps minimize chipping and stretches tool life while still keeping precise dimensional accuracy. It also has an extended 4" length of cut and 7" overall length, so you get strong reach for deep cavity machining, long reach profiling, and heavy stock removal type operations. The uncoated design is tuned for clean, efficient machining of aluminum as well as other non ferrous materials.
Tool Specifications:
- Diameter: 1”
- Shank: 1”
- Length of Cut (LOC): 4”
- Overall Length (OAL): 7”
- Flutes: 2 - Corner Radius
- Radius: .030”
- Material: Solid Carbide
- Coating: Uncoated
- Series: CR2000 Series Ferocious
- Part No: CR2069.030
Key Performance Features:
- 2-flute corner radius design for improved edge strength and durability.
- Extended 4" length of cut for deep cavity machining and heavy stock removal.
- 7" overall length supports long-reach and deep pocketing operations.
- Original 55° high helix geometry for efficient chip evacuation and reduced cutting forces.
- Uncoated cutting edges optimized for aluminum and non-ferrous materials.
- .030" corner radius helps reduce edge chipping and improve tool longevity.
- Suitable for aluminum, brass, copper, plastics, and composite materials .
