Product Overview

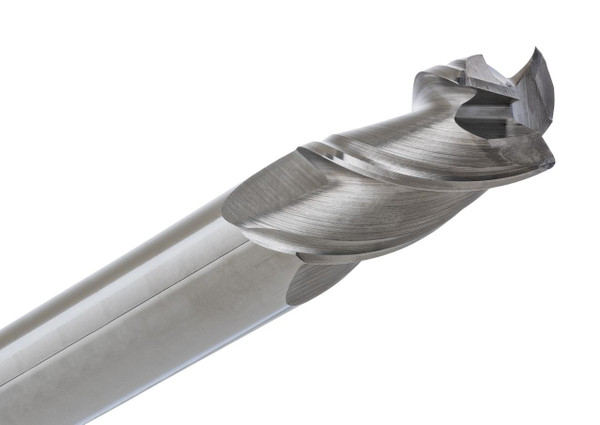

The CGS Tool CR5306.020 is a 1/4" diameter 3-flute solid carbide corner radius end mill from the Ferocious 3x CR5300 Series, sized for non-ferrous machining where clean chip flow and strong feed capability both matter. It's built specifically around aluminum-style applications.
Its unique flute geometry, wiper end geometry, variable helix, and variable pitch are engineered to reduce chatter and harmonics, while the .020" radius adds edge support. Rated for aluminum, copper, brass, plastics, composites, and other non-ferrous materials, it's built for fast stock removal and clean finishing.
Tool Specifications:
- Diameter: 1/4"
- Shank: 1/4"
- Length of Cut (LOC): 3/4"
- Overall Length (OAL): 2-1/2"
- Flutes: 3 - Corner Radius
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .020"
- Series: CR5300 / Ferocious 3x Series
- Part No: CR5306.020
Key Performance Features:
- 3-Flute corner radius design for non-ferrous machining
- .020" radius matched to diameter improves edge strength
- Wiper end geometry supports cleaner surface finish
- Variable helix and variable pitch reduce chatter
- Effective across aluminum, copper, and brass
- Also suited to plastics, composites, and non-ferrous materials
