Product Overview

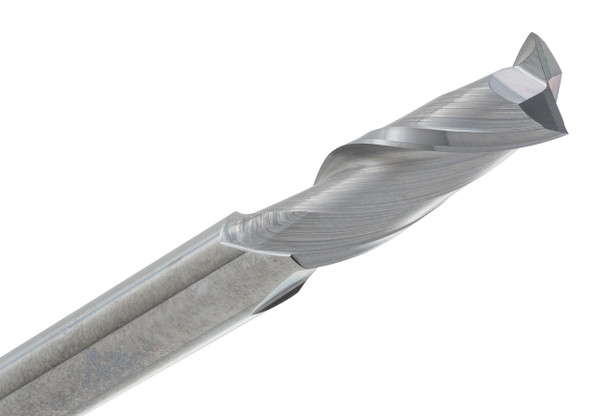

Metric general work at 4mm diameter — the CGS Tool M120-040 is a 2-flute square end mill from the 120 Series built for slotting, profiling, pocketing, and light milling.
The 2-flute geometry gives useful chip space, and the square end profile keeps side-wall control accurate. Uncoated carbide handles mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 4mm
- Shank: 4mm
- Length of Cut (LOC): 14mm
- Overall Length (OAL): 50mm
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Helix: 30°
- Design: Single End
- Series: CGS 120 Series
- Part No: M120-040
Key Performance Features:
- 2-flute square end design provides good chip clearance
- 30° helix supports smooth cutting and controlled chip movement
- Solid carbide construction provides rigidity and cutting accuracy
- Uncoated finish suited for flexible general-purpose machining
- Metric 4mm diameter supports precise millimeter-based CNC work
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for slotting, profiling, pocketing, and light stock removal
