Product Overview

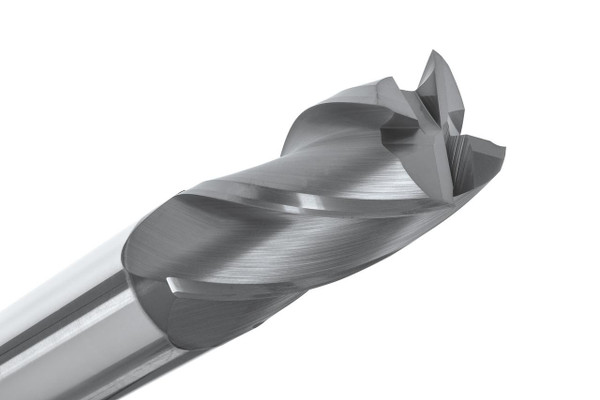

Metric CNC milling with solid, reliable coating protection, like the M140-060-ALTiN at 6mm dia. This 4 flutes square end mill is built for nice slots, precise contours, plunge work and side wall cutting in millimeter based programming.
The ALTiN coating gives the cutter more resistance to heat and wear, especially when the cutting is more demanding. You also get a 20 mm length of cut, a 63 mm overall length, and a 30° helix, so the M140-060-ALTiN stays a handy metric milling tool for regular production and general-purpose jobs as well.
Tool Specifications:
- Diameter: 6mm
- Shank: 6mm
- Length of Cut (LOC): 20mm
- Overall Length (OAL): 63mm
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: No
- Series: 140 Series Metric End Mills
- Part No: M140-060-ALTiN
Key Performance Features:
- Metric 4-flute square end built for general milling
- 6mm diameter works well for controlled metric features
- ALTiN coating improves heat and wear resistance
- 30° helix supports smooth, controlled chip movement
- Handles slotting, profiling, plunging, and sidewall milling
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
