Product Overview

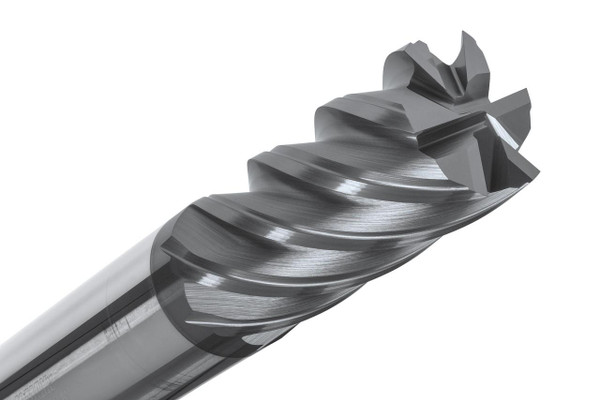

The CGS Tool MX160-7500 is this 3/4” diameter , 6-flute solid-carbide square end mill made for high-performance cutting stuff, especially when you’re working with hardened steels, stainless steels, titanium, Inconel, and other kind of rare alloys. As part of the VMAX MX160 Series, it’s meant to give you really strong machining stability, fast metal removal rates, and a nicer surface finish too, even when the CNC milling setup is pretty demanding.
The MX160-7500 also uses advanced variable helix and variable pitch geometry , which helps reduce chatter and those harmonic vibrations when you run aggressive cutting. Then you get the premium nACRo high-performance coating, it offers excellent heat resistance and wear protection, so you can see better tool life and more dependable results at higher cutting speeds and higher feed rates too.
Tool Specifications:
- Diameter: 3/4”
- Shank: 3/4”
- Length of Cut (LOC): 1-1/2”
- Overall Length (OAL): 4”
- Flutes: 6 - Square End
- Material: Solid Carbide
- Coating: nACRo High Performance
- Series: CGS VMAX MX160
- Part No: MX160-7500
Key Performance Features:
- Variable helix geometry improves machining stability and cutting smoothness.
- Variable pitch design helps reduce chatter and harmonic vibration.
- 6-flute configuration supports higher feed rates and improved productivity.
- nACRo high-performance coating provides exceptional heat and wear resistance.
- Designed for high-efficiency milling in hardened steels and exotic alloys.
- Promotes improved surface finishes and efficient chip evacuation.
- Engineered for precision CNC machining and extended tool life.
