Product Overview

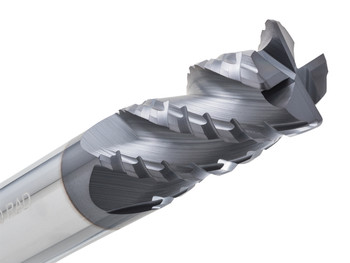

The CGS Tool 1018-ALTiN is a 1/2" diameter 4-flute solid carbide square end mill built specifically for heavy roughing and slot milling, the ALTiN-coated counterpart in the Beast Series lineup for shops that need extra edge life on top of aggressive material removal. It belongs to the Beast 1000 Series, CGS Tool's dedicated roughing line.
What sets this tool apart is the same chip breaker design that defines the Beast line, snapping chips into shorter segments to cut spindle load, now paired with an ALTiN coating for added heat and wear resistance on longer runs. With a variable helix to fight chatter, it holds up through steels, stainless, cast iron, titanium, superalloys, Inconel, and select non-ferrous materials.
Tool Specifications:
- Diameter: 1/2"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: ALTiN
- Series: CGS Beast Series
- Part No: 1018-ALTiN
Key Performance Features:
- 4-flute square end design with exclusive chip breaker geometry
- ALTiN coating adds heat and wear resistance
- Variable helix reduces chatter and harmonics during roughing
- Lower spindle load allows more aggressive feed rates
- Purpose-built for rough milling and slotting operations
- Rated for steels, stainless, cast iron, titanium, alloys, Inconel, and select non-ferrous materials
