Product Overview

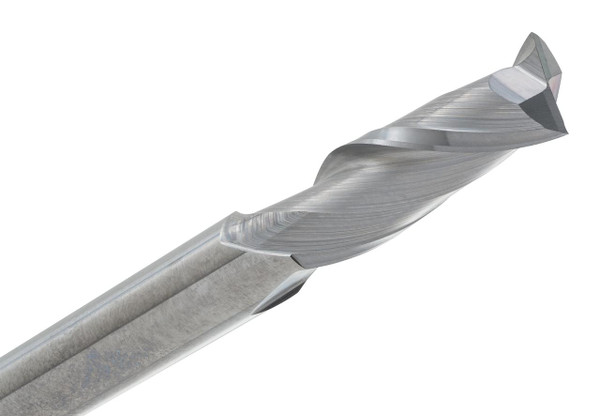

The CGS Tool 120-0938 is a 3/32" diameter 2-flute solid carbide square end mill built for fine general-purpose milling, useful for small slots, compact profiles, and clean flat-bottom details.
With a 3/8" length of cut and 1-1/2" overall length, this 120 Series cutter gives controlled cutting performance in smaller CNC features, and the uncoated carbide construction makes it practical for everyday shop applications.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 2 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: CGS 120 Series
- Part No: 120-0938
Key Performance Features:
- Fine milling work handled by a 2-flute square end design
- 3/32" diameter supports compact machining features
- 30° helix keeps chip movement smooth
- Suited to slotting, profiling, plunge, and side wall milling
- Single-end solid carbide construction
- Performs across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
