Product Overview

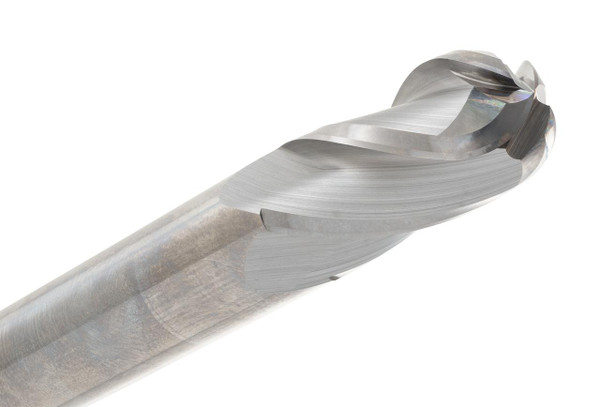

Getting clean contour work in those tight little features, it really wants a small radius, and the 142-0938 somehow gives you exactly that at 3/32" diameter, with a .0469" radius. This 4-flute ball end mill works well when you need small rounded details, miniature pockets, a bit of smoothing or light blending, and of course finishing tasks.
Made with a 30° helix, plus single-end construction, the 142 Series tool gives machinists more managed cutting for compact applications.The uncoated carbide body makes it practical for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites.
Tool Specifications:
- Diameter: 3/32"
- Shank: 1/8"
- Length of Cut (LOC): 3/8"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .0469"
- Series: 142 Series
- Part No: 142-0938
Key Performance Features:
- 4-flute ball end built for small contour work
- .0469" radius supports fine, rounded features
- 30° helix keeps cutting smooth and controlled
- Handles finishing, blending, and compact profile milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
