Product Overview

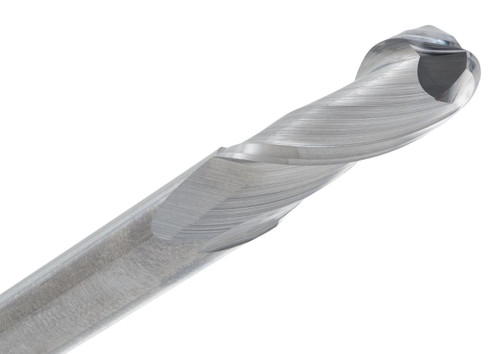

Broad rounded surfaces need a bigger ball end tool, and the 122-1000 provides one at a full 1" diameter. This 2-flute ball end mill carries a .500" radius, sized for surface blending, curved pocket work, and smooth finishing passes on larger features.
With a 30° helix and single-end construction, this 122 Series cutter keeps the cutting action steady across general-purpose applications. It's a strong choice for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites wherever a large ball-end finish is required.
Tool Specifications:
- Diameter: 1"
- Shank: 1"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 2 Flute
- End Style: Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .500"
- Series: 122 Series
- Part No: 122-1000
Key Performance Features:
- 2-flute ball end built for larger contour milling
- .500" radius supports broad, rounded surfaces
- 30° helix supports steady, general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
