Product Overview

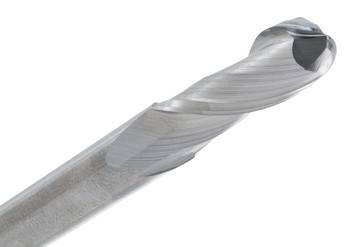

The CGS Tool 122-4531 is a 29/64" diameter 2-flute solid carbide ball end mill built specifically for general-purpose profile and contour milling in mid-size features. It belongs to the 122 Series, CGS Tool's standard ball nose line.
What sets this tool apart is the .2265" radius, striking a practical balance between coverage and detail for curved pockets and surface blending. Running a 30° helix in a single-end build, and left uncoated, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 29/64"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 2 - Ball End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: .2265"
- Series: CGS 122 Series
- Part No: 122-4531
Key Performance Features:
- 2-flute ball end design for contour and profile milling
- .2265" radius supports smooth rounded surface work
- 30° helix gives steady general-purpose cutting
- Handles finishing, blending, and curved pocket machining
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
