Product Overview

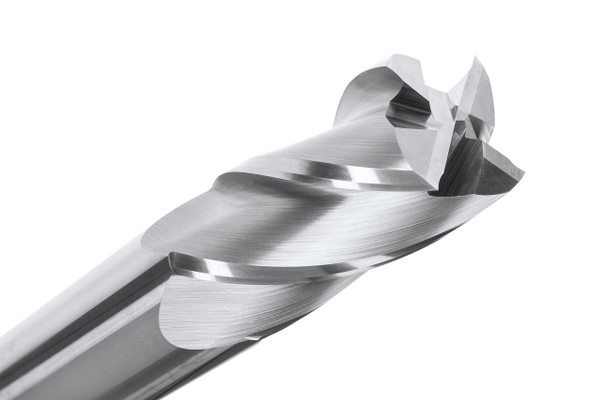

Right at the near-half-inch mark, the 140-4531 fills a practical gap for shops that need something just under 1/2" without stepping up to the full size. This 29/64" diameter 4-flute square end mill handles slotting, profiling, plunge cutting, and side wall milling where a sharp square-end finish matters.
Precision cutting edges and a 30° helix keep this 140 Series cutter consistent, moving chips out steadily across common shop materials. Uncoated and single-end, it's a dependable choice for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites in everyday CNC work.
Tool Specifications:
- Diameter: 29/64"
- Shank: 1/2"
- Length of Cut (LOC): 1"
- Overall Length (OAL): 3"
- Flutes: 4 Flute
- End Style: Square End
- Material: Solid Carbide
- Coating: Uncoated
- Radius: No
- Series: 140 Series
- Part No: 140-4531
Key Performance Features:
- 4-flute square end suited to roughing and finishing
- 29/64" diameter gives a useful near-half-inch cutter size
- 30° helix supports smooth, controlled chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide construction
- Cuts mild steel, stainless, cast iron, titanium, non-ferrous, plastics, and composites
