Product Overview

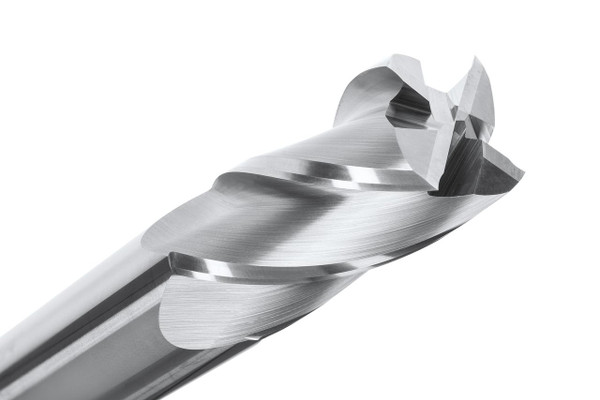

The CGS Tool 140-8750 is a 7/8" diameter 4-flute solid carbide square end mill built specifically for larger general-purpose milling where the job calls for real material removal alongside a clean square end. It belongs to the 140 Series, CGS Tool's standard general-purpose line.
What sets this tool apart is simply its size and consistency — at 7/8" diameter it's built for roughing and finishing side by side, and the 30° helix keeps chip flow controlled even under heavier loads. Left uncoated, it holds up through mild steel, stainless, cast iron, titanium, non-ferrous material, plastics, and composites.
Tool Specifications:
- Diameter: 7/8"
- Shank: 7/8"
- Length of Cut (LOC): 1-1/2"
- Overall Length (OAL): 4"
- Flutes: 4 - Square End
- Material: Solid Carbide
- Coating: Uncoated
- Series: CGS 140 Series
- Part No: 140-8750
Key Performance Features:
- 4-flute square end design for roughing and finishing
- 7/8" diameter supports stronger stock removal
- 30° helix helps maintain smooth chip movement
- Handles slotting, profiling, plunging, and side wall milling
- Single-end solid carbide build
- Rated for mild steel, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites
