142-0312-ALTiN

General Purpose

Write a Review
$26.58
4 flute solid carbide Ball end mills are ideal for rough and finish milling in a large range of materials. These end mills can be used in slotting, profile, plunge and side wall milling. Designed with an industry standard 30° degree helix and precision cutting edges these end mills will perform above the competition.
SKU:
105753
Condition:
New
Shipping:
Calculated at Checkout
DIA:
1/32
SHANK:
1/8
LOC:
3/32
OAL:
1-1/2
FLUTES:
4 Flute
END STYLE:
Ball End
COATING:
ALTiN
Radius:
No
Adding to cart… The item has been added

Product Overview

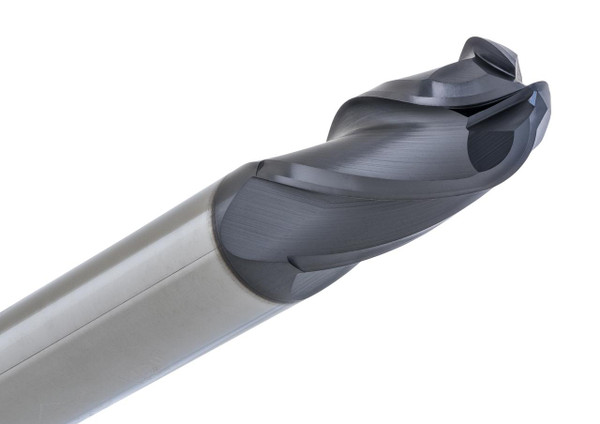

The CGS Tool 142-0312-ALTiN is a 1/32" diameter 4-flute solid carbide ball end mill from the 142 Series, sized for very fine detail machining where the part needs a clean rounded form more than heavy removal. It's built for careful contour work rather than aggressive milling.
Built on the same precision CNC equipment as CGS Tool's other general-purpose lines, it holds a 30° helix and a .0156" radius matched to its diameter, with an ALTiN coating that adds protection to a cutting edge this small. Rated across mild steels, stainless, cast iron, titanium, non-ferrous metals, plastics, and composites, it offers precise ball end performance.

Tool Specifications:

  • Diameter: 1/32"
  • Shank: 1/8"
  • Length of Cut (LOC): 3/32"
  • Overall Length (OAL): 1-1/2"
  • Flutes: 4 - Ball End
  • Material: Solid Carbide
  • Coating: ALTiN
  • Radius: .0156"
  • Series: CGS General Purpose (142 Series)
  • Part No: 142-0312-ALTiN

Key Performance Features:

  • 4-Flute ball end design for very small profile work
  • .0156" radius matched to diameter for tiny contour cuts
  • ALTiN coating improves wear resistance
  • Compact length gives better control in delicate features
  • Effective across mild steels, stainless, cast iron, and titanium
  • Also suited to non-ferrous metals, plastics, and composites
