Product Overview

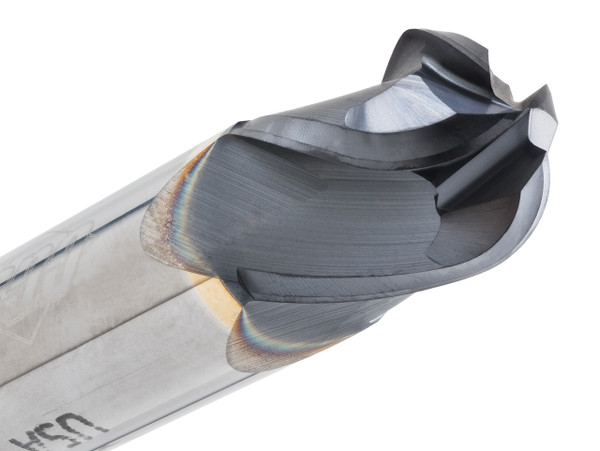

Miniature radius work doesn't get much smaller than the CGS Tool 442-0312-ALTiN, a 1/32" diameter 4-flute ball end mill from the double-end 442 Series built for very fine contouring and detailed finishing.
The tiny ball nose form handles curved details at this scale, and ALTiN coating helps the edge survive heat and wear it wouldn't otherwise take. Solid carbide construction runs across mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites.
Tool Specifications:
- Diameter: 1/32"
- Shank: 1/8"
- Length of Cut (LOC): 1/16"
- Overall Length (OAL): 1-1/2"
- Flutes: 4 - Ball End
- Material: Solid Carbide
- Coating: ALTiN
- Radius: .0156"
- Helix: 30°
- Design: Double End
- Series: CGS 442 Series
- Part No: 442-0312-ALTiN
Key Performance Features:
- 4-flute ball end design for miniature contouring and finishing work
- Double-end construction provides two usable cutting ends
- ALTiN coating helps improve heat resistance and edge protection
- 30° helix supports smooth cutting in detailed milling applications
- Solid carbide construction provides precision and rigidity
- Suitable for mild steels, stainless, cast iron, titanium, non-ferrous materials, plastics, and composites
- Built for fine 3D profiling, radius details, mold work, and surface blending
